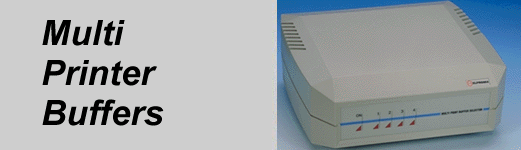

Printers are often under utilised resources in office environments. With the Elproma Multiprint Buffer, these resources can be made more effective by allowing the connection up to 5 PC's/printers in a mixed configuration. If a printer is occupied, data being sent from other computers is temporarily stored in memory. This means that you can continue your work without having to wait for a printer.
Features:
Built in powersupply.
An external adapter is not necessary.
Auto configuring high speed centronics parallel interfaces.
No jumper or dipswitch settings are required. The MP-05P-256K will recognise the connected equipment an adjust the port settings accordingly. Data is collected at a speed of 10000 characters per second.
Constructed according to VDE and CEE regulations.
Safe and reliable electrical construction meets stringent international standards.
Smart appearance.
The MP-05P-256K comes in a good looking inflammable ABS enclosure.
Software controlled printer selection.
Users can choose any connected printer by means of a supplied software POP-UP program, activated by the printscreen button or both shift buttons, which also allows the deletion of an erroneously sent file.
MS Windows support.
A powerful Windows printer selection program is included. If an active file is deleted in MS Windows Print Manager, the part of the file that is already in the MP-05P-256K will be erased and this command will be transferred to the selected printer, which causes the printer to stop immediately.
Non-volatile configuration memory.
All chosen settings (target printer, tim-out) stay valid even if power is switched off.
Dynamic memory allocation.
If more computers are printing at the same time, the 256Kb bufferspace will be distributed among these computers according to their individual requirements.
Multilingual user interface.
The supplied software (a POP-UP selection program and a set-up program) can be installed in many languages.
Pop-up menu:
- select with arrow keys
- PrintScreen
- Port 2
- Port 3
- Port 4
- Port 5
- Delete File
- Quit
Specifications:
- CPU : Z80180 10Mhz
- Data rate : 10Kb/second
- Powersupply: 220-240V 5W also available in 110V
- Connectors : 25 pole D-type female
- Case : ABS
